The heating speed and efficiency of the mold heating tube are key indicators for measuring its performance, which have a direct impact on energy consumption, production cycle, and final product quality during the production process. The following will provide a detailed explanation of these two concepts and their measurement methods.
Heating speed
Heating speed refers to the speed at which the mold heating tube converts energy into thermal energy and transfers it to the mold. This is usually influenced by the following factors:
1. Heating tube power: The greater the power of the heating tube, the more heat is generated per unit time, and the faster the heating speed.
2. Thermal conductivity: The higher the thermal conductivity of the mold material, the faster the heat is conducted inside the mold, thereby accelerating the entire heating process of the mold.
3. Mold size and shape: Large or complex shaped molds require more heat to heat evenly, so the heating speed may slow down.
4. Heating tube layout: The distribution of heating tubes on the mold has a significant impact on the heating speed. Uniform distribution can reduce hot and cold spots and improve heating efficiency.

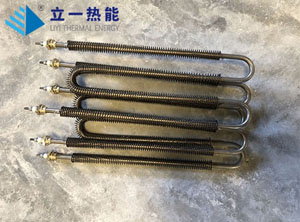

Mold heating tube
Efficiency
Efficiency refers to the effectiveness of a heating tube in converting electrical energy into thermal energy. An effective heating system should be able to minimize energy loss and use most of the energy for heating purposes. The ways to measure efficiency include:
1. Heat conversion efficiency: This is the ratio of input power to actual power used for heating. In an ideal situation, all input energy should be converted into thermal energy, but in reality there may be some loss.
2. Heat loss: Heat loss refers to the heat dissipated into the environment through radiation, convection, and conduction. A well-designed heating system will minimize these losses as much as possible.
3. Temperature control: Accurate temperature control can avoid overheating, thereby saving energy and maintaining the effectiveness of the heating process.
Measurement method
To quantify heating speed and efficiency, the following methods can be used:
1. Temperature sensors: Install temperature sensors at different positions on the mold to record temperature changes during the heating process, in order to evaluate heating speed and temperature distribution uniformity.
2. Energy consumption measurement: By monitoring the power consumption of heating tubes and combining temperature change data, calculate the heat conversion efficiency.
3. Thermal imaging technology: Use a thermal imaging camera to observe the temperature distribution on the surface of the mold, helping to identify areas of heat loss and uneven heating.
In practical applications, optimizing the design of heating tubes, selecting suitable materials, and accurately controlling the heating process are all important strategies to improve heating speed and efficiency. In addition, continuous monitoring and adjustment of the operating status of the heating system is also a key step in maintaining effective heating.
