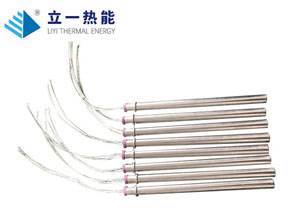

Product name: 3D glass hot bending mechanical and electrical heat pipe
Product brand: a heat
Power: 850/950/1000 w
Working voltage: 220 v / 380 v is optional
Diameter: Φ 16
Custom processing: it can receive for processing
Features:
Set up a company by independent research and development of the intelligent optimization algorithm, can quickly find out the best soaking plate punching position and heating tube optimal power distribution, the soaking slab effective area temperature optimization theory to the limit, make the graphite mould evenly heat, great offer 3 d curved surface glass molding yield.
Now the company has developed the fourth generation of 3 d hair heat pipe, hot bending machine product biggest advantage is that with the increase of temperature, power will automatically adjust (that is, the power type heating mode), can effectively reduce heat loss, make the machine more energy conservation and environmental protection.
Insulating tube white or red in color
The highest use temperature: 900 ° C
The highest use temperature as the temperature of the armoured tube department, please pay attention to wire the heat temperature (500 ° C) be sure to from the mounting holes in the wire.
The following parameters are for reference only, please refer to our actual order specifications
diameter | length | voltage | power | Power density |
16mm | 225/290mm | 220V/380V | 850/950/1000W | According to the heating part of the power density (rather than the calculated length) |
Precision testing quality: each produces products go through precision test, don't let a bad products into the market
